EVO 25w UVC

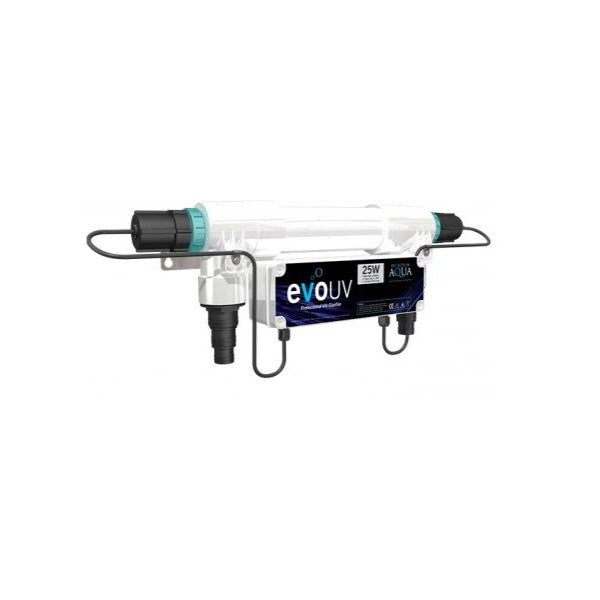

The Evolution Aqua evoUV deliver a more efficient and more economical performance than before thanks to their new design. The new range includes completely redesigned 30 Watt and 55 Watt models and a 110 UV, a 15 Watt and 25 Watt model perfect for use on the smaller garden pond, along with a 75 Watt version. Our new range of evoUV pond clarifiers have been manufactured to deliver optimum performance at all times. evoUVs have been designed to clear green water, which is caused by single celled green algae, and prevent it from returning. Eradicates green water in garden ponds Features highly efficient ballasts IP Rating of IPX5 Easy to maintain, easy to install Ballast located in a fully water-tight cover Connects to flexi-hose or rigid pipework 6 models; 15W, 25W, 30W, 55W, 75W & 110W The overall dimensions of evo15 and evo25 are identical. They are 540mm (l) x 116mm (w) x 153mm (h) excluding hosetails. The distance between the centre of the inlet and the centre of the outlet is 319mm. The evo15 uses a standard length 15W T8 UV bulb and the evo25 uses a standard 25W T8 UV bulb. Installing the evoUV PUMP-FED INSTALLATION Install evoUV before the filter on the pipework run from the pond GRAVITY-FED INSTALLATION Install evoUV after the filter on the return to pond pipework run. TECHNICAL DATA: Model Max. pond size Max. flow rate Bulb Power Inlet/Outlet Fittings supplied 15,000 Litres 3,300 UK Gallons 3,963 US Gallons 7,500 Litres/hr 1,650 UK Gallons/hr 1,982 US Gallons/hr 15W (1 x 15W T8) 1½" 2 x 1½" Threaded Hosetails 20,000 Litres 4,400 UK Gallons 5,284 US Gallons 10,000 Litres/hr 2,200 UK Gallons/hr 2,642 US Gallons/hr 25W (1 x 25W T8) 1½" 2 x 1½" Threaded Hosetails 30,000 Litres 6,600 UK Gallons 7,925 US Gallons 15,000 Litres/hr 3,300 UK Gallons/hr 3,962 US Gallons/hr 30W (1 x 30W T8) 1½" 2 x 1½" Threaded Hosetails 55,000 Litres 12,100 UK Gallons 14,530 US Gallons 20,000 Litres/hr 4,400 UK Gallons/hr 5,284 US Gallons/hr 55W (1 x 55W T8) 1½" 2 x 1½" Threaded Hosetails 75,000 Litres 16,500 UK Gallons 19,815 US Gallons 25,000 Litres/hr 5,500 UK Gallons/hr 6,605 US Gallons/hr 75W (1 x 75W T8) 1½" 2 x 1½" Threaded Hosetails 75,000 Litres 16,500 UK Gallons 19,815 US Gallons 25,000 Litres/hr 5,500 UK Gallons/hr 6,605 US Gallons/hr 110W (2 x 55W T8) 2" No Fittings Supplied
